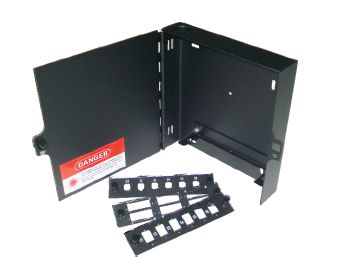

SPL2000-A1U offers protection and storage for 1xN PLC Splitter, which are middle capacity and both side operation, enables to combine and separate image signals at 1550nm wavelength and data transmission siginals (internet) at 1310nm/1490nm wavelength.
¡ñ PLC splitter is compatible with 3 wavelength(1310/1490/1550)
¡ñ Low insertion loss and high directivity, high quality, reliability, and performance
¡ñ Various types are available for different purpose: 1x8,1x16,1x32 (or 2x8, 2x16, 2x32)
¡ñ FTTH network and CATV system application
¡ñ SC, SC duplex adapter panel optional, customize available
¡ñ Suitable for 19" standard rackrack
| Installing PLC Splitter optical characteristic |
¡ñ Fig.-1: Common Splitter Specification
|
Parameter |
Common Specification |
|
Wavelength Range (nm) |
1260-1650 |
|
Port Wavelength Range (nm) |
1310¡À 20/1490 ¡À10/1550¡À 25 |
|
Fiber Cable |
Corning SMF-28e |
|
Return Loss (dB) |
¡Ý50 |
|
Directivity (dB) |
¡Ý55 |
|
Max. Optical power input level (mW) |
500 |
|
Operation Temperature (¡æ) |
-40¡æ~85¡æ |
|
Storage Temperature(¡æ) |
-40¡æ~85¡æ |
|
Port Display |
Mark label |
|
Package Dimension |
125 ¡Á 530 ¡Á 330 (mm) |
¡ñ Fig.-2:Individual PLC Splitter Specification
|
Item |
Optical Parameters |
Wave Length Range: 1260~1650nm |
|
1¡Á8 |
1¡Á16 |
1¡Á32 |
2¡Á8 |
2¡Á16 |
2¡Á32 |
|
1 |
Insertion Loss |
£¼10.8 |
£¼14.0 |
£¼17.3 |
£¼11.0 |
£¼14.4 |
£¼17.6 |
|
2 |
Uniformity |
£¼0.9 |
£¼1.1 |
£¼1.5 |
£¼1.1 |
£¼1.5 |
£¼2.0 |
|
3 |
Return Loss |
¡Ý50 |
¡Ý50 |
¡Ý50 |
¡Ý50 |
¡Ý50 |
¡Ý50 |
|
4 |
Directivity |
¡Ý55 |
¡Ý55 |
¡Ý55 |
¡Ý55 |
¡Ý55 |
¡Ý55 |
|
5 |
PDL |
¡Ü0.3 |
¡Ü0.3 |
¡Ü0.3 |
¡Ü0.4 |
¡Ü0.4 |
¡Ü0.4 |
|
P/N |
Description |
Dimensions
(H¡ÁW¡ÁD) |
|
5812130001 |
SPL2000-A1U, with 1¡Á8 PLC(Planar Lightwave Circuit) Splitter, with SC/SMAPC Connector |
43¡Á483¡Á252 |
|
5812130002 |
SPL2000-A1U, with 1¡Á16 PLC(Planar Lightwave Circuit) Splitter, SC/SMAPC Connector |
43¡Á483¡Á252 |
|
5812130003 |
SPL2000-A1U, with 1¡Á32 PLC(Planar Lightwave Circuit) Splitter, SC/SMAPC Connector |
43¡Á483¡Á252 |
|
5812130004 |
SPL2000-A1U, with 2¡Á8 PLC(Planar Lightwave Circuit) Splitter, SC/SMAPC Connector |
43¡Á483¡Á252 |
|
5812130005 |
SPL2000-A1U, wiht 2¡Á16 PLC(Planar Lightwave Circuit) Splitter, SC/SMAPC Connector |
43¡Á483¡Á252 |
|
5812130006 |
SPL2000-A1U, with 2¡Á32 PLC(Planar Lightwave Circuit) Splitter, SC/SMAPC Connector |
43¡Á483¡Á252 |
|
5814230001 |
SPL2000-A1U, with 1¡Á8 PLC(Planar Lightwave Circuit) Splitter, LC/SMAPC Connector |
43¡Á483¡Á252 |
|
5814230002 |
SPL2000-A1U, with 1¡Á16 PLC(Planar Lightwave Circuit) Splitter, LC/SMAPC Connector |
43¡Á483¡Á252 |
|
5814230003 |
SPL2000-A1U, with 1¡Á32 PLC(Planar Lightwave Circuit) Splitter, LC/SMAPC Connector |
43¡Á483¡Á252 |
|
5814230004 |
SPL2000-A1U, with 2¡Á8 PLC(Planar Lightwave Circuit) Splitter, LC/SMAPC Connector |
43¡Á483¡Á252 |
|
5814230005 |
SPL2000-A1U, wiht 2¡Á16 PLC(Planar Lightwave Circuit) Splitter, LC/SMAPC Connector |
43¡Á483¡Á252 |
|
5814230006 |
SPL2000-A1U, with 2¡Á32 PLC(Planar Lightwave Circuit) Splitter, LC/SMAPC Connector |
43¡Á483¡Á252 |
|
Notice:
Standard configuration is with 0.9mm fiber for input and output, 1.0m length, and with SC/APC , LC/APC connector. |
|
