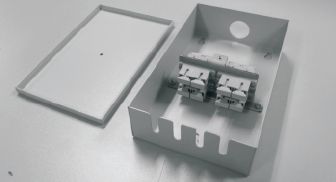

WM1000-D wall mounting series of optic distribution boxes, which can splice and distribute fiber. especially suitable for terminal node of optical cable in the OAN,data centers,local area network etc.
¡ñ Suitable for SC, LCD, MTRJ ,FC, ST and SCD adapter.
¡ñ Wall mounting available
¡ñ With Cable routing accessories to limit bend radius
¡ñ Fully enclosed and lockable
¡ñ Compact design
¡ñ Maximum capacity: 12 fibers
¡ñ Can hold 4pcs adapter panels, and 3-position or 6-position adapter panel optional.
¡ñ All material is RoHS compliant.
Optics performance
¡ñ Insert loss£º¡Ü0.3dB
¡ñ Return loss£º£¾40dB (PC)
£¾50dB (UPC)
£¾60dB (APC)
¡ñ Durability£º£¾1000 Mating
¡ñ Wavelength£º850nm,1310nm,1550nm
Paint & Color
¡ñ Color£º RAL 7035
¡ñ paint£º Comply with ASTM
Operating condition
¡ñ Operating temperature£º-25¡ãC~+40¡ãC
¡ñ Storage temperature£º-25¡ãC~+55¡ãC
¡ñ Relative humidity£º¡Ü85%£¨+30¡ãC£©
¡ñ Air pressure£º70Kpa~106Kpa
Machine performance
¡ñ Dimension
Other panel plate
STANDARD CONFIGURATION
|
WM1000-D patch panel accessories |
|
Model Number |
Product name |
Number |
|
6640260001 |
Nylon Locking Tie Wraps , 100©L/2.0©L , |
10 |
|
6600510030 |
Heat Shrinkable fiber optic splice protector, |
-- |
|
6190300000 |
Spool Cable Routing |
2 |
|
|
Splice tray |
2 |
|
Notice: ¡°¡ª¡° the number is same to fiber cord number, |
|
P/N |
Description |
Capacity |
Dimensions
(H x W x D) |
|
|
WM1000-D ,Blank Panel |
|
304¡Á304¡Á83 |
|
|
WM1000-D,fit for 24 SC/LCDadapters |
|
304¡Á304¡Á83 |
|
|
WM1000-D,fit for 24 FC/ST adapters |
|
304¡Á304¡Á83 |
|
|
WM1000-D,fit for 12 SCD/LCQ adapters |
|
304¡Á304¡Á83 | Note: adaptor and pigtail do not been contained, customer needs order individually.
|
