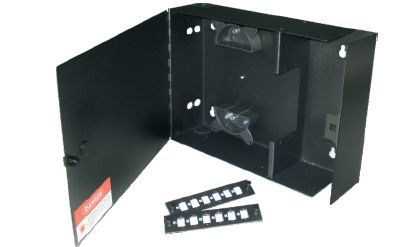

A) Wall mounted Box;
B) Max. capacity is 48FO if for with 2 adapter panels of 6 ports of LC quad cutting;
Max. capacity is 24FO is for with 2 adapter panels of 6 ports of SC duplex cutting;
Max. capacity is 24FO is for with 2 adapter panels of 12 ports of ST/FC cutting;
C) optional for RAL7035 or RAL9005, and RoHS compliant;
D) one unit per package which is in 385mm*290mm*150mm;
E) weight is 3.06kg after packaged, and Material in Steel.
| Dmension For Body and Panel |
|
No. |
Type |
Max.capacity |
Dimensions
(H x W x D)mm |
|
1 |
3W-WB12B, for with 2 adapter plates of 6 SC Duplex Ports |
12/24 |
385 x 290 x 150 |
|
2 |
3W-WB12B, for with 2 adapter plate2 of 6 SC Simplex Ports |
|
|
|
3 |
3W-WB12B, for with 2 adapter plate of 6 ST/FC Ports |
12/24 |
|
|
4 |
3W-WB12B, for with 2 adapter plate of 8 ST/FC Ports |
16/32 |
|
|
5 |
3W-WB12B, for with 2 adapter plate of 12 ST/FC Ports |
24/48 |
| |
|
|
