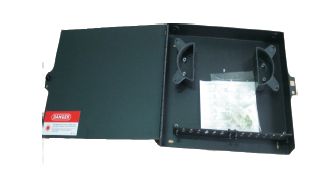

RM2000-E2U patch panel series of optic distribution boxes, which are middle capacity and both side operation, are suitable for central offices connection points in the OAN data centers, local area network etc.
¡ñ Reliable fastening, stripping and earthing devices for optic fiber.
¡ñ Suitable for LC, LCD, SC, SCD, FC, ST and STD adapter.
¡ñ Fit for standard 19˝ rack.
¡ñ Adapter panel optional & 1U height.
¡ñ Available in 24, 48 or 72 -position termination.
¡ñ Maximum capacity: 192 fibers
¡ñ All material is RoHS compliant.
Optics performance
¡ñ Insert loss£º¡Ü0.3dB
¡ñ Return loss£º£¾40dB (PC)
£¾50dB (UPC)
£¾60dB (APC)
¡ñ Durability£º£¾1000 Mating
¡ñ Wavelength£º850nm,1310nm,1550nm
Operating condition
¡ñ Operating temperature£º-25¡ãC~+40¡ãC
¡ñ Storage temperature£º-25¡ãC~+55¡ãC
¡ñ Relative humidity :¡Ü85%(+30¡ãC)
¡ñ Air pressure£º70Kpa~106Kpa
Paint & Color
¡ñ Color£º RAL 9005 or RAL 7035
¡ñ paint£º Comply with ASTM
Package requirement reference
¡ñ All material is ROHS compliant
¡ñ Dimension 330 x 530 x 125 (mm)
¡ñ Weight: 6kg
Machine performance
¡ñ Dimension
STANDARD CONFIGURATION
|
RM2000-E2U patch panel accessories |
|
P/N |
Description |
Number |
|
6379920005 |
Abnormity bolt, M6x16 , |
4 |
|
6191200414 |
Cable Glands (PA66/PG13.5) |
4 |
|
6640260001 |
Nylon Locking Tie Wraps , 100©L/2.0©L , |
32 |
|
6600510030 |
Heat Shrinkable fiber optic splice protector, |
-- |
|
6191200414 |
Cable Glands (PA66/PG13.5) |
2 |
|
6390020001 |
L style bolt, ¦Õ2.0 x 24 |
8 |
|
6190100206 |
Splice tray cover , ABS/Black |
1 |
|
6190100208 |
Splice tray body ,ABS/Black |
4 |
|
6600510023 |
Heat shrinkable fiber optic splice protector, |
- |
|
Notice: ¡°*¡± the number is same to adaptor ¡°¡ª¡° the number is same to fiber cord number |
|
P/N |
Description |
Capacity |
Dimensions
(H x W x D) |
|
|
RM2000-E2U,fit for 48 ST adapters |
48 fibers |
88¡Á482¡Á252 |
|
|
RM2000-E2U,fit for 48 FC adapters |
48 fibers |
88¡Á482¡Á252 |
|
|
RM2000-E2U,fit for 48 SCD/LCQ adapters |
92/192 fibers |
88¡Á482¡Á252 |
|
|
RM2000-E2U,fit for 48 SC/LCD adapters |
48/96 fibers |
88¡Á482¡Á252 |
|
|
RM2000-E2U,fit for 72 SC/LCD adapters |
72/144 fibers |
88¡Á482¡Á252 |
|
|
RM2000-E2U,fit for 72 ST adapters |
72 fibers |
88¡Á482¡Á252 |
Note: adaptor and pigtail do not been contained, customer needs order individually.
|
|
|
