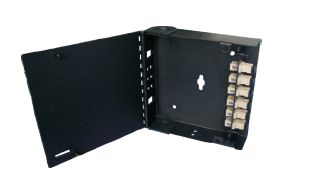

A) Wall mounted Box;
B) Max. capacity is 24FO if for with 1 adapter panels of 6 ports of LC quad cutting;
Max. capacity is 12FO is for with 1 adapter panels of 6 ports of SC duplex cutting;
Max. capacity is 12FO is for with 1 adapter panels of 12 ports of ST/FC cutting;
C) optional for RAL7035 or RAL9005, and RoHS compliant;
D) 8 units per package which is in 185mm*188mm*85mm;
E) Weight is 8.2kg after packaged, and Material in Steel.
| Dimension For Body and Panel |
|
No. |
Type |
Max.capacity |
Dimensions
(H x W x D)mm |
|
1 |
3W-WB6S, for with 1 adapter plate of 6 SC Duplex Ports |
12/24 |
185 x 188 x 85 |
|
2 |
3W-WB6S, for with 1 adapter plate of 6 SC Simplex Ports |
|
|
|
3 |
3W-WB6S, for with 1 adapter plate of 6 ST/FC Ports |
6 |
|
|
4 |
3W-WB6S, for with 1 adapter plate of 8 ST/FC Ports |
8 |
|
|
5 |
3W-WB6S, for with 1 adapter plate of 12 ST/FC Ports |
12 |
| |
|
|
